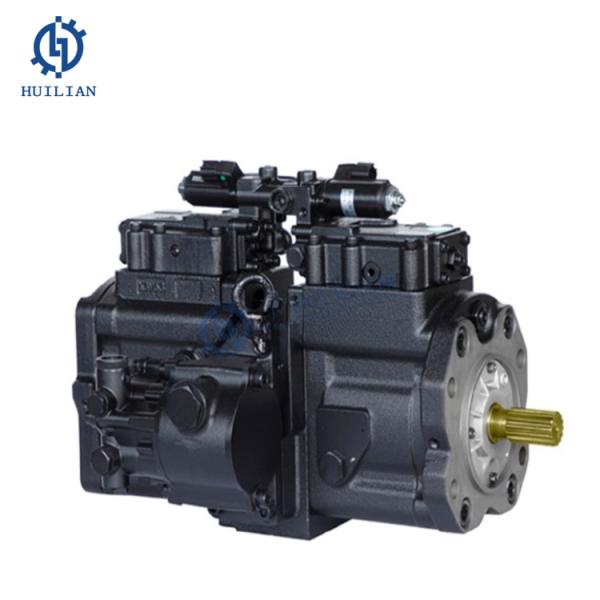

Excavator Spare Parts YX10V00003F1 K3V63DTP-0E01/0E02 Excavator Hydraulic Pump For Kobelco SK135SR SK115SRDZ
Product Description
| Product Name | Excavator Hydraulic Pump |
| Oem No | YX10V00003F1 |
| Engine No | Kobelco SK135SR SK115SRDZ ED150-1E |
| Packing Number | 1 |
| N.W/KG | 100KG |
| G.W/KG | 110KG |
| Packing Size | 73*48*48 |
| Related Oem | YY10V00001F6R K3V63DTP-0E01/0E02 YY10V00001F6C YX10V00003F1 |
| Pressure | Standard, High Pressure |
Features of Excavator Hydraulic Pump
1) It has high transmission efficiency, giving full play to the power and fuel economy of the engine.
2) The hydraulic system and hydraulic components have sufficient reliability under the action of large load changes and sharp vibration and impact.
3) Coordinate the light and vibration-resistant cooler to reduce the total heat generation of the system, so that the hydraulic oil temperature does not exceed 80 degrees, or the temperature rise does not exceed 45 degrees when the main engine continues to work.
4) The sealing performance of the hydraulic system is very good, and the oil filter and dustproof device are set up.
5) Hydraulic or electro hydraulic servo control device is adopted, so that the excavator can set up an automatic control system, thereby improving the technical performance of the excavator and reducing the labor intensity of the driver.
A. Made of aluminum alloy, high strength, corrosion resistance, light weight, suitable for operation in various environments.
B. The two-speed feature reduces the number of times of pressing, and the low-pressure chamber is quickly in a load-utilizing state, and immediately converts to high-pressure, shortening each operation cycle.
C. Equipped with a pressure regulating valve, which can adjust the control and set the working pressure.
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
| | YY10V00001F1 | 1 | HYDRAULIC PUMP | KOB Superseded by part number: YY10V00001F6, YT13E01083P1 |
| | YY10V00001F6R | 1 | REMAN-HYD PUMP | KOB SK135SR ASN YY02-03001, SK135SRLC ASN YH02-01301, Reman for New P/N YY10V00001F1 |
| | YY10V00001F6C | 1 | CORE-HYDRAULIC PUMP | KOB Return Number |
| 1 | YX10V00003F1 | 1 | HYDRAULIC PUMP | KOB ASSY SEE P. YX10V00003,(Not serviced - Order next higher assembly pn) |
| | YY10V00001F2 | 1 | PUMP | KOB ASSY Superseded by part number: YY10V00001F6 |
| | YY10V00001F3 | 1 | PUMP | KOB ASSY Superseded by part number: YY10V00001F6 |
| 3 | YV46W00001F1 | 1 | ASSY. | KOB GEAR SEE P. YV46W00001 Superseded by part number: YX46W00001F3 |
| 2 | YX10V01001F1 | 2 | REGULATOR | KOB SEE P.YX10V01001 Superseded by part number: YX10V01001F2 |
| 4 | YN35V00018F2 | 2 | SOLENOID VALVE | KOB SEE P.YN35V00018(FOR F1 ONLY) |
| 5 | YX10V00004F1 | 1 | PUMP | KOB GEAR SEE P.YX10V00004,(FOR F1,F2 ONLY) Superseded by part number: 77279971, YX10V00004F2 |
| 6 | YB35V00003F1 | 2 | VALVE | KOB SOLENOID SEE P. YB35V00003,(FOR F2,F3 ONLY) |
| 7 | YX10V00004F2 | 1 | PUMP | KOB GEAR,(FOR F3 ONLY) |
| Pos. | Part No | Qty | Parts name | Comments |
| . . | YX10V00003F1 | 1 | HYDRAULIC PUMP | KOB ASSY (Not serviced - Order next higher assembly pn) |
| 111 | YX10V00003S111 | 1 | SHAFT | KOB (FRONT) |
| 113 | YX10V00003S113 | 1 | SHAFT | KOB (REAR) |
| 116 | YX10V00003S116 | 1 | GEAR | KOB |
| 123 | YX10V00003S123 | 2 | ROLLER BEARING | KOB |
| 124 | YW10V00005S124 | 2 | BEARING | KOB NEEDLE |
| 127 | YW10V00003S127 | 4 | SPACER | KOB |
| 141 | NSS | 2 | NOT SOLD SEPARAT | CON BLOCK, CYLINDER |
| 151 | NSS | 18 | NOT SOLD SEPARAT | CON PISTON |
| 152 | NSS | 18 | NOT SOLD SEPARAT | CON SHOE |
| 153 | 2437U188S153 | 2 | PLATE | KOB |
| 156 | YW10V00005S156 | 2 | BUSHING | KOB |
| 157 | 2437U188S157 | 18 | SPRING | KOB |
| 211 | 2437U188S211 | 2 | PLATE | KOB SHOE |
| 212 | NSS | 2 | NOT SOLD SEPARAT | CON PLATE |
| 214 | NSS | 2 | NOT SOLD SEPARAT | CON BUSHING |
| 251 | 2437U188S251 | 1 | PLATE | KOB |
| 252 | YX10V00003S252 | 1 | SUPPORT | KOB |
| 261 | 2437U188S261 | 1 | COVER | KOB SEAL |
| 262 | YX10V00003S262 | 1 | COVER | KOB SEAL |
| 271 | 2437U188S271 | 2 | CASING | KOB |
| 312 | YX10V00003S312 | 1 | BLOCK | KOB VALVE |
| 313 | NSS | 1 | NOT SOLD SEPARAT | CON PLATE, VALVE |
| 314 | NSS | 1 | NOT SOLD SEPARAT | CON PLATE. VALVE |
| 401 | 2437U188S401 | 8 | CAPSCREW | KOB SCREW |
| 406 | ZS23C06016 | 8 | SCREW,Hex Socket Head, M6 x 16mm | KOB M06x1.0x16mm Superseded by part number: ZS28C06016 |
| 466 | 2441U667S466 | 2 | PLUG | KOB 1/4" PF |
| 467 | 2441U436S468 | 4 | PLUG | KOB |
| 490 | 2441U722S490 | 15 | PLUG | KOB 1/16" NPTF |
| 531 | NSS | 2 | NOT SOLD SEPARAT | CON PIN |
| 532 | YX10V00003S532 | 2 | PISTON | KOB SERVO |
| 534 | YX10V00003S534 | 2 | STOP | KOB |
| 535 | 2437U188S535 | 2 | STOP | KOB |
| 548 | NSS | 2 | NOT SOLD SEPARAT | CON PIN FEED BACK |
| 702 | ZD12G03000 | 2 | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB ID 29.4 ± 0.29 x OD 35mm |
| 710 | ZD12G08500 | 2 | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOB ID 84.40 ± 0.73 x OD 90mm |
| 711 | ZD12G09500 | 1 | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOB O-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 717 | ZD12G12000 | 2 | O-RING,3.1mm Thk x 119.4mm ID, 90 Duro | KOB O-Ring -- ID 119.40 ± 0.98 x OD 125mm |
| 719 | ZD12G11500 | 2 | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB ID 114.40 ± 0.94 x OD 120mm |
| 724 | ZD12P00800 | 18 | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 725 | ZD12P01100 | 2 | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 728 | ZD12P01800 | 4 | O-RING | KOB ID 17.8mm x OD 20.2mm |
| 732 | ZD12P01600 | 2 | O-RING | KOB ID 15.80 ± 0.20 x OD 20mm |
| 774 | YX10V00003S774 | 1 | OIL SEAL | KOB Superseded by part number: YX10V00003S020 |
| 789 | ZD85P01600 | 2 | RING | KOB BACK UP |
| 792 | ZD85G03000 | 2 | BACK-UP RING | KOB ID 30 x OD 35 x Th 1.25mm |
| 808 | ZN12C16010 | 4 | NUT | KOB |
| 824 | ZR16X03500 | 2 | RING | KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 885 | 2441U436S886 | 2 | PIN | KOB |
| 886 | ZP26D06014 | 4 | PIN | KOB Roll -- OD 06 x 14mm Long |
| 901 | ZS91C01000 | 2 | BOLT | KOB Eye -- M10x1.50x18mm |
| 953 | 2437U188S953 | 2 | CAP,M10 x 20mm | KOB SETSCREW |
| 954 | 2437U188S954 | 2 | SCREW | KOB SETSCREW |
| 981 | YX10V00003S981 | 1 | NAME PLATE | |
| 983 | 2437U407S983 | 2 | RIVET | KOB PIN |
| . . | 2437U188S530 | 2 | REPAIR KIT | KOB CONSISTS OF REF 531X1. 548X1 |
| . . | YW10V00003S011 | 2 | PISTON ASSY | KOB CONSISTS OF REF 151X9, 152X9 |
| . . | YX10V00003R200 | 1 | REPAIR KIT | KOB CONSISTS OF REF 141X1, 313X1 |
| . . | YX10V00003R300 | 1 | REPAIR KIT | KOB CONSISTS OF REF 141X1, 314X1 |
| . . | YX10V00003R400 | 2 | REPAIR KIT | KOB CONSISTS OF REF 212X1, 214X1 |
